Description

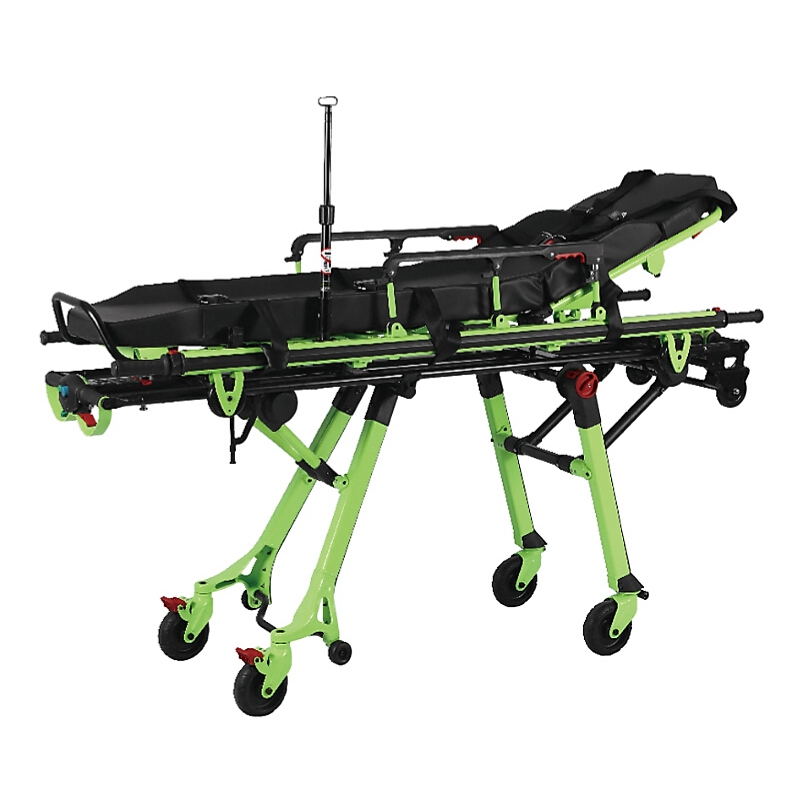

Greating Automatic Loading Ambulance Stretcher Model:GI-A1
The Greating GI-A1 Ambulance Stretcher is designed in consultation with various ambulance services personnel and ergonomists. It offers improved manoeuvrability, superior stability and load capacity as well as many enhanced loading and handling features requested by end users.
Features:
*The main material is high-strength aluminum alloy which is hardened and surface treated.

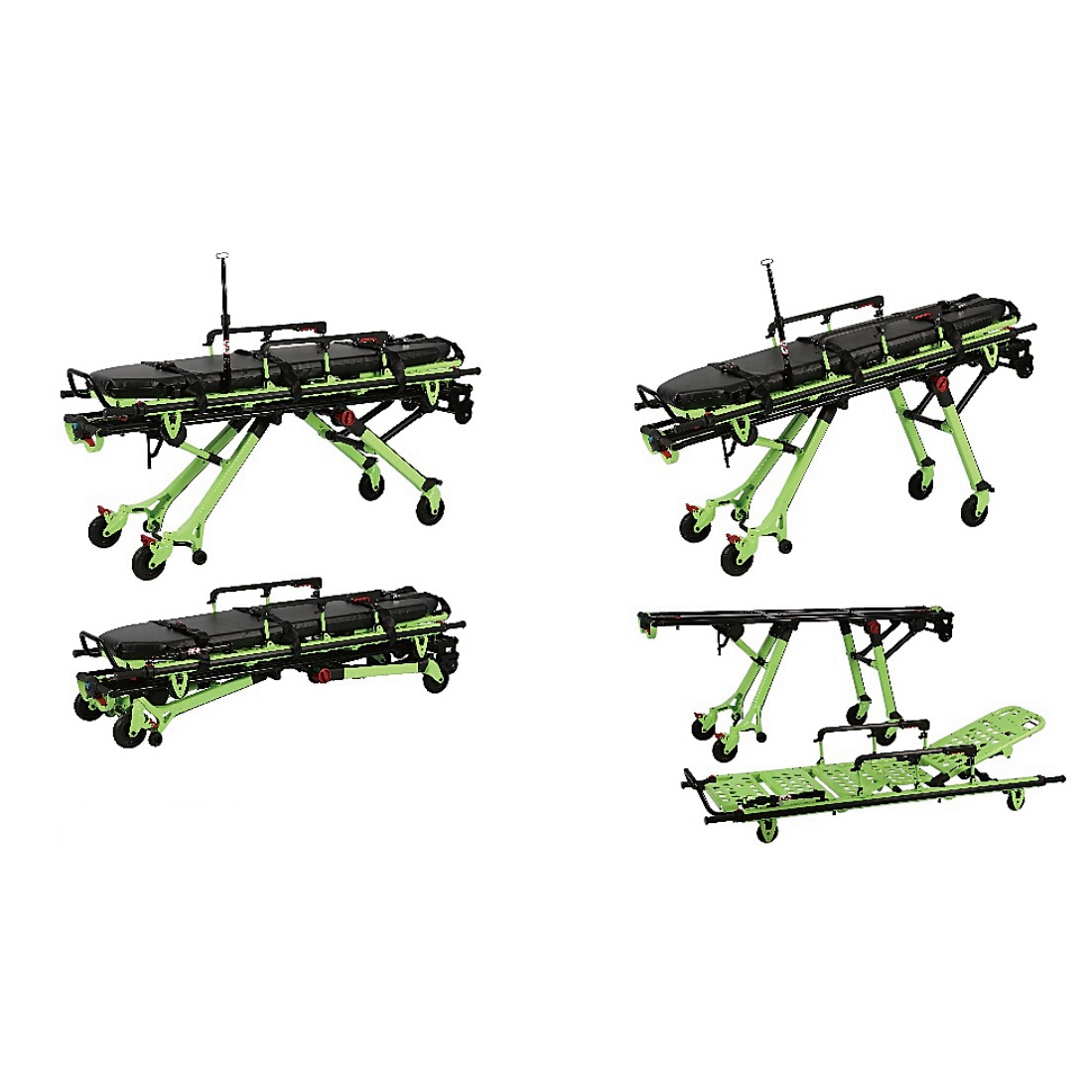

*The height of front part, back part and the whole stretcher can be adjusted in 4 positions. the height is adjusted by the handles at both sides in the middle.
*There is a safety switch on the car loading part preventing mistake-operation.
Only one medical staffs needed to push the stretcher into the ambulance car.
*Mattress of the stretcher adopts PVC material concave shape. Thickness: 10 cm.
The backrest angle is adjustable with vest type safety belts.
*It also equipped with a three-stage IV stand. The guardrails are adjustable.
*The stretcher adopts separate structure. It is isolated and locked by switches, and its locking mechanism is secure and firm.
*The upper part has telescopic handles, easy to carry.
*The carrier adopts wide tires to adjust complex road conditions. Four wheels are all universal. The universal wheels on the front end adopts a elastic latch to lock.They can be locked to go straight or universal as needed.The universal wheels on the rear end have brakes.
*Stretcher fixing device is integrated. It can lead the stretcher to load into the ambulance car, making sure the stretcher in the right position. The fixing device uses 3-point fixtion, which is stable and secure.
Loading height: 62cm Wheel size: Φ150mm
| Model | High Position (L*W*H) |
Low Position (L*W*H) |
Back rest Angle |
Packing Size (1pcs) |
Lift capacity |
N.W | G.W |
| GI-A1 | 197*56*93cm | 197*56*37cm | 75° | 208x66x62cm | 250kg | 53kg | 93kg |
Accessories: Fixing device
Optional: Transfer board
