Description

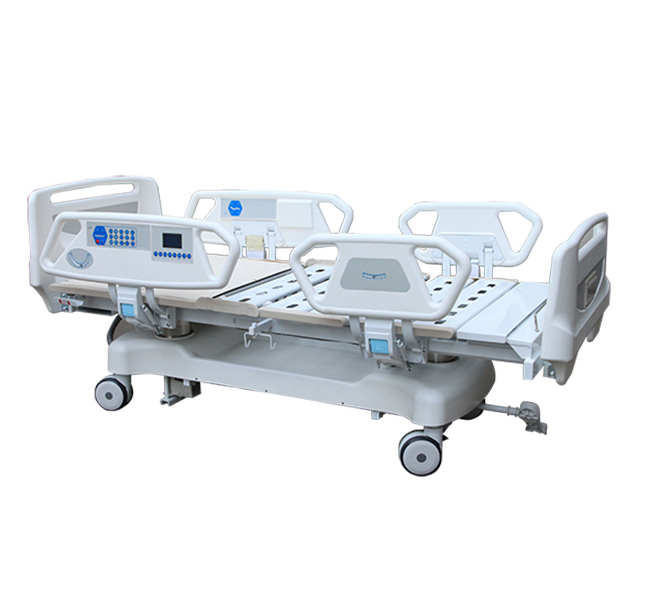

Greating Electric hospital bed GI-508

Seven  Function Adjustable Comfortable Electric Hospital Icu Bed

Introduction:

Seven function with x-ray function ICU transfer tilting hospital bed.

Standard Parameters:

Parameters	Size
Overall Length(extend)	2230mm
Overall Length(not extended)	2130mm
Overall Width	1050mm
Patient Platform Length(extended)	2020mm
Patient Platform Length(not extended)	1920mm
Patient Platform Width	900mm
Maximum Safe Load	250kg
Caster Diameter	150mm
Back-rest Lifting	0°- 75°
Knee-rest Lifting	0°- 45°
Trendelenburg/Reversed trendelenburg	0°- 10°
Lateral tilt	0°- 30°
Height Adjustment	570-750mm

Standard Functions:

* Linak motor and control box.

* Supplied with back-up battery switch.

* One step detachable head and foot board.

* CPR handle, dual side, with clear red mark.

*Manual CPR—Instant manually release of back part

* Remote controller built in railing, both side: inside for patient easy control

Outside for nurse control.

* Title angle indicator in railing: four for guardrail, two for bed frame.

* One button chair position.

* Bed length can be extended when needed.

*Central brake system with 6″ wheels.

* Integrated base with all cable and motor inside, the bed can be washed.

*X-ray translucent back part, C-arm function available.

*Weighing System: Its in-bed scale system increase efficiency by taking accurate

weight readings with the patient in any position. Weight readings system, LCD display on side railing.

*Alarm away from the bed.
