Description

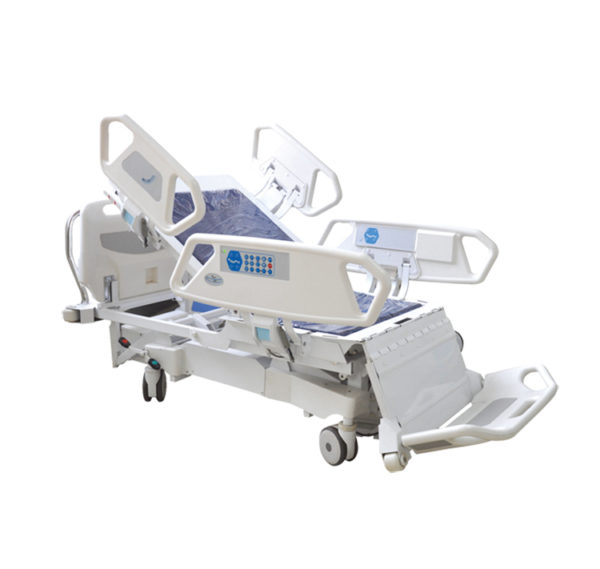

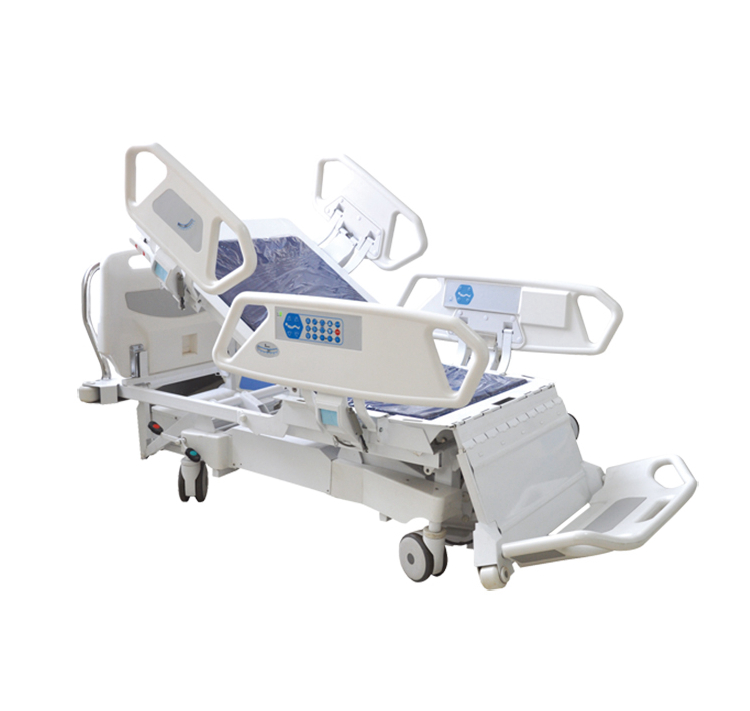

Greating Electric hospital bed GI-507

Electric ICU Bed With Touch Panel

Introduction:

Used in ICU room, advanced ICU Bed with eight functions.



Standard Parameters:



Parameters	Size
Overall Length(extend)	2020mm
Overall Length(not extended)	1920mm
Overall Width	995mm
Patient Platform Length(extended)	1920mm
Patient Platform Length(not extended)	1820mm
Patient Platform Width	820mm
Maximum Safe Load	250kg
Foot-part Decline	0°– 90°
Caster Diameter	150mm
Back-rest Lifting	0°– 70°
Knee-rest Lifting	0°– 30°
Reversed Trendelenburg	0°– 15°
Trendelenburg	0°– 15°
Height Adjustment	500-940mm



Standard Functions:

* Linak motor and control box

* Supplied with back-up battery switch

* One step detachable head and foot board

* CPR handle, dual side, with clear red mark.

* Electric CPR—Instant electrically release of back part

* Manual CPR—Instant manually release of back part

* Remote controller built in railing, both side: inside for patient easy control

Outside for nurse control

*Title angle indicator in railing: one for backrest, one for trendelenburg

* One button chair position

* Bed length can be extended when needed

*Chrome plating push handle, 2 position adjustable

*Central brake system with 6″ wheels

* Integrated base with all cable and motor inside, the bed can be washed

* X-ray translucent back part, C-arm function available.

* Weighing System: Its in-bed scale system increase efficiency by taking accurate

     weight readings with the patient in any position. Weight readings system, LCD

display on side railing



Functions Show:

*LCD Touch Screen(Optional)

1. Chinese and English optional

2. Weight reading system

3. Patient information

4. Patient records

*Button:

1. Master: For lock/unlock all function

2. Head: For lock/unlock back rest adjustment

3. Knee: For lock/unlock knee rest adjustment

4. Hi-Low: For lock/unlock height adjustment

5. CPR: For all functions go back to origin
